China Brick Making Machine Manufacturers
About Us

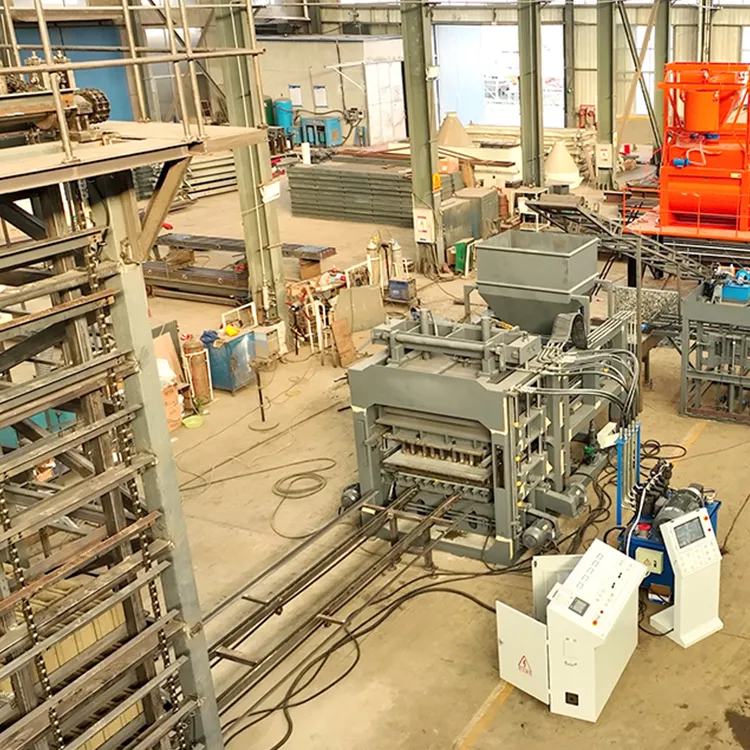

Mobile block making machine
- Pallet size: 1300*1100mm
- Product molding height: 45-230mm
- Molding cycle: 15-25S/time
- Main vibration form: Table vibration
- Vibration frequency: 2800-5100 times/minute
- Main machine dimensions: 12500*3200*2900mm
- Main machine power : 98kw
- Rated pressure: 21 MPA
- Excitation force: 110 KN
- Host Machine Weight: 13000KG

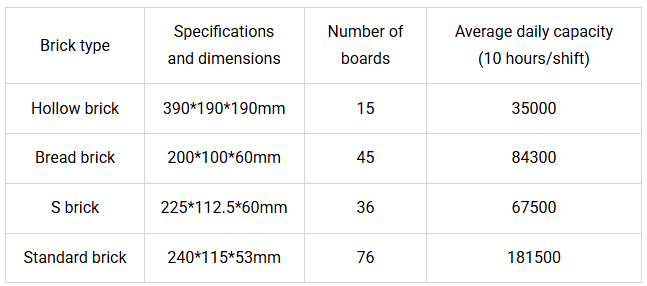

Brick Size & Daily Production Capacity
| Brick type | Specifications and dimensions | Number of boards | Average daily capacity (10 hours/shift) |
| Hollow brick | 390*190*190mm | 15 | 35000 |
| Bread brick | 200*100*60mm | 45 | 84300 |
| S brick | 225*112.5*60mm | 36 | 67500 |
| Standard brick | 240*115*53mm | 76 | 181500 |
Why Choose Us
Excellent product quality
As a veteran wooden furniture manufacturer, maxport always regards quality as the lifeline of the enterprise.
Support customization
Whether you need a small machine or a large brick making machine, we can tailor it for you. Support customer customization services.
One-stop caring service
You can find high-quality production machines for any brick type you need here.
Professional team
We have a professional design and service team. The design team is "customer-centric" and recommends the best solution for you based on the market in your area.
