Semi-automatic block making machine

  • Pallet size: 900*700mm
  • Product molding height: 45-230mm
  • Molding cycle: 15-25S/time
  • Main vibration form: Table vibration
  • Vibration frequency: 2800-5100 times/minute
  • Main machine dimensions: 7450*2450*2900mm
  • Main machine power : 32kw
  • Rated pressure: 16MPA
  • Excitation force: 65KN
  • Host Machine Weight: 5900KG
620
617

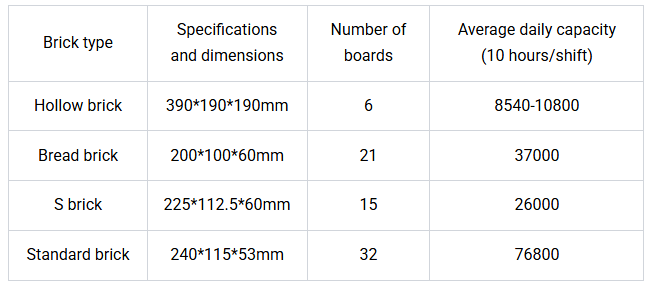

Brick Size & Daily Production Capacity

Brick typeSpecifications and dimensionsNumber of boardsAverage daily capacity (10 hours/shift)
Hollow brick390*190*190mm68540-10800
Bread brick200*100*60mm2137000
S brick225*112.5*60mm1526000
Standard brick240*115*53mm3276800

Product Showcase

Diverse Product Types Meet Multifaceted Needs

Brick making machines can produce various types of construction bricks. Solid bricks exhibit high compressive strength and are primarily used for load-bearing wall structures. Hollow bricks feature regularly arranged voids, offering both lightweight properties and thermal insulation performance. Interlocking paving bricks utilize unique designs that allow firm without mortar, making them widely used in plazas and pedestrian pathways. Environmentally friendly fly ash bricks use industrial waste as the main raw material, reducing production costs while meeting green building requirements. By changing molds, a single machine can produce products of different specifications and functions, significantly enhancing market adaptability.
